Channel

Support for filament hanks up to 1.20 meter in length, longer on request.

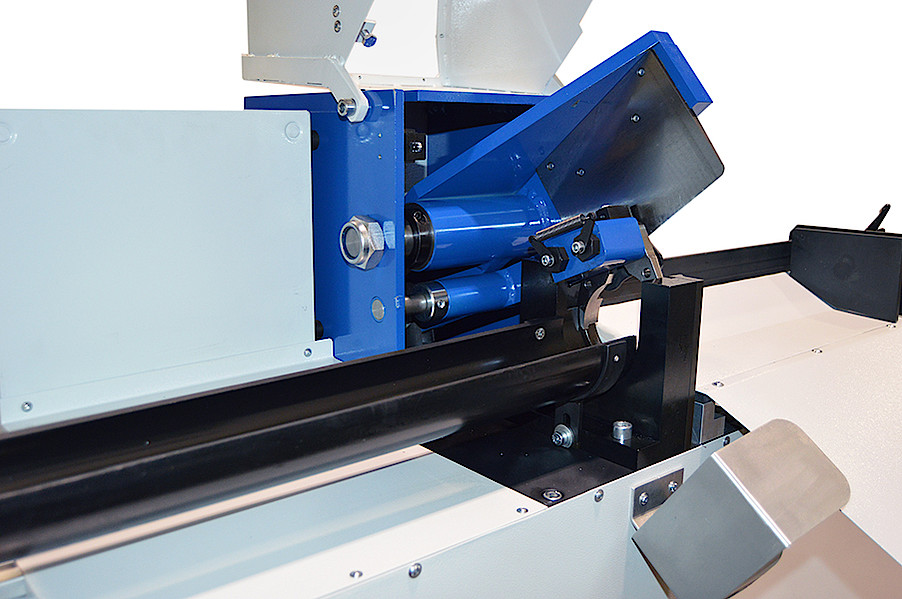

Downholder

Thanks to the mechanic hold-down clamp before the passage to the knife, the filament hank keeps its round shape and the cuts become clean and straight.

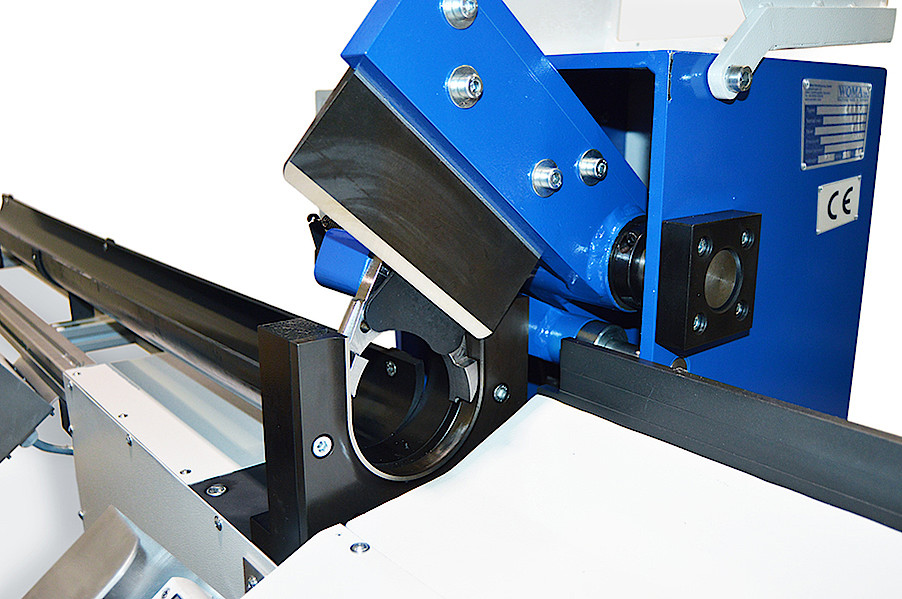

Knife

The motorized knife is made of special hardened steel and suitable for various materials. It can be grinded and readjustet many times.

Stop

The length stop can be adjusted quickly and easily. Via spring tension it stays in position even under strain, which ensures a precise cutting length. After the cut it drives back and releases the finished cut for ejection via a flap.

Drive & Controls

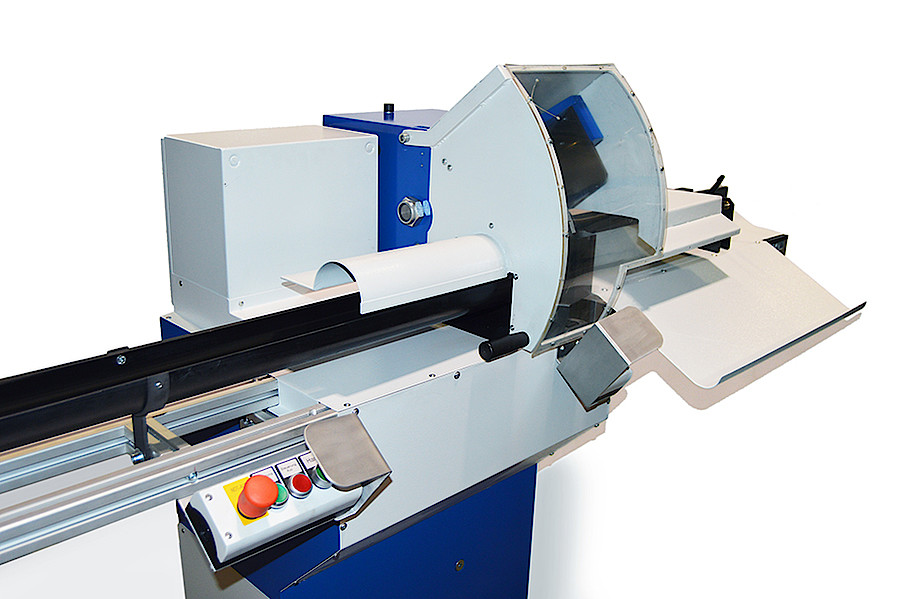

Thanks to the powerful motor drive, the knife cuts even the strongest materials such as PVC, Tampico or Abrasive. Cutting is released by two hand operation. Of course this machine has safety switches and emergency stop.

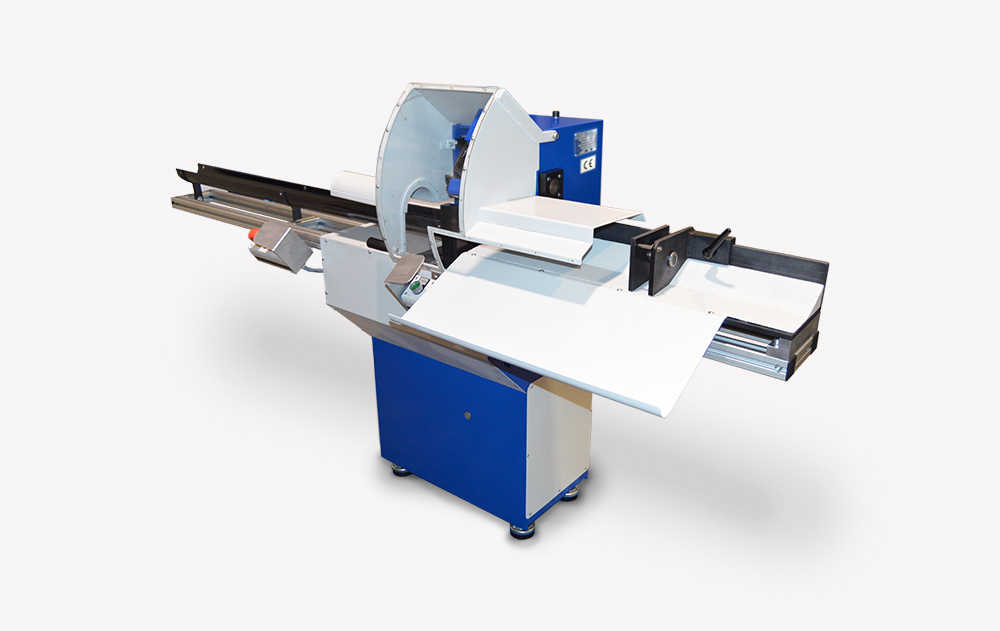

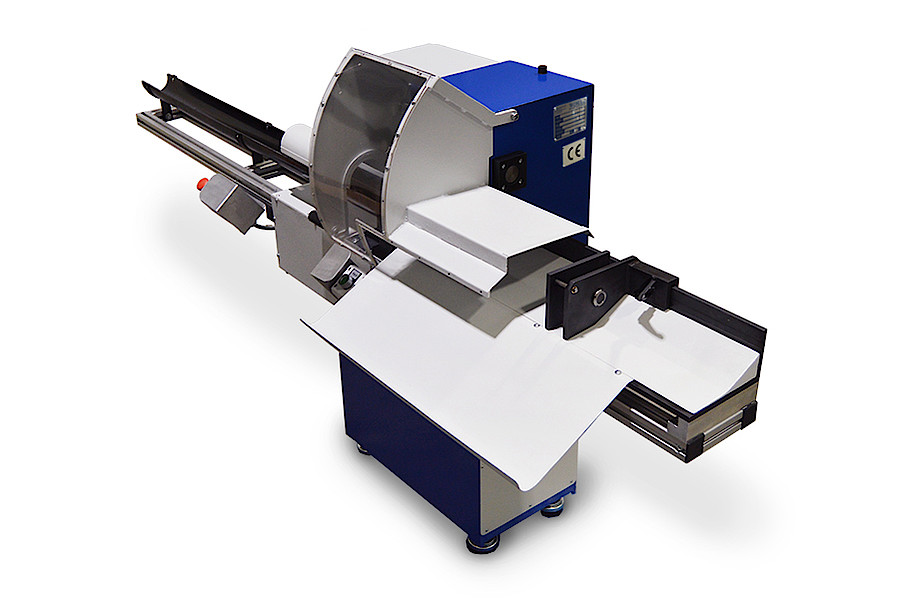

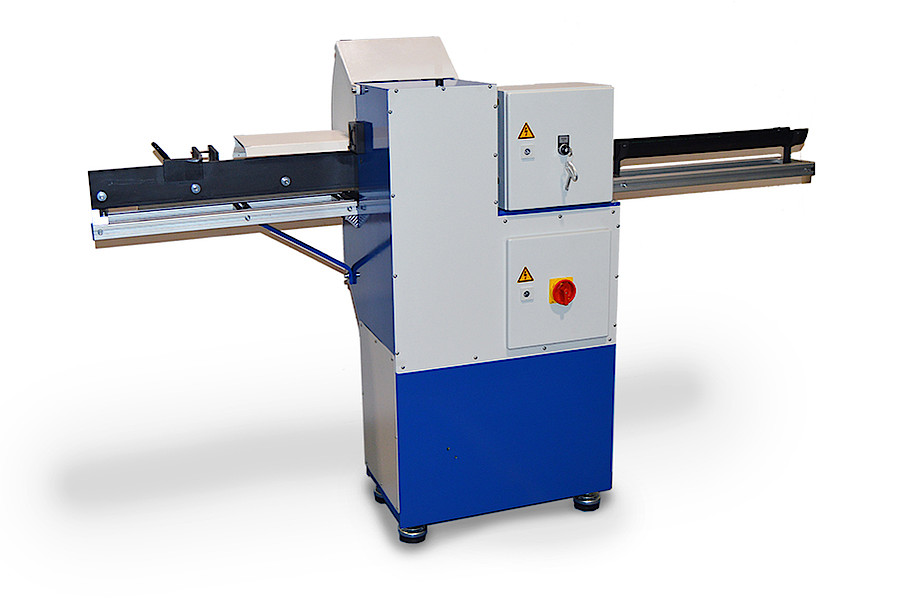

Machine Frame

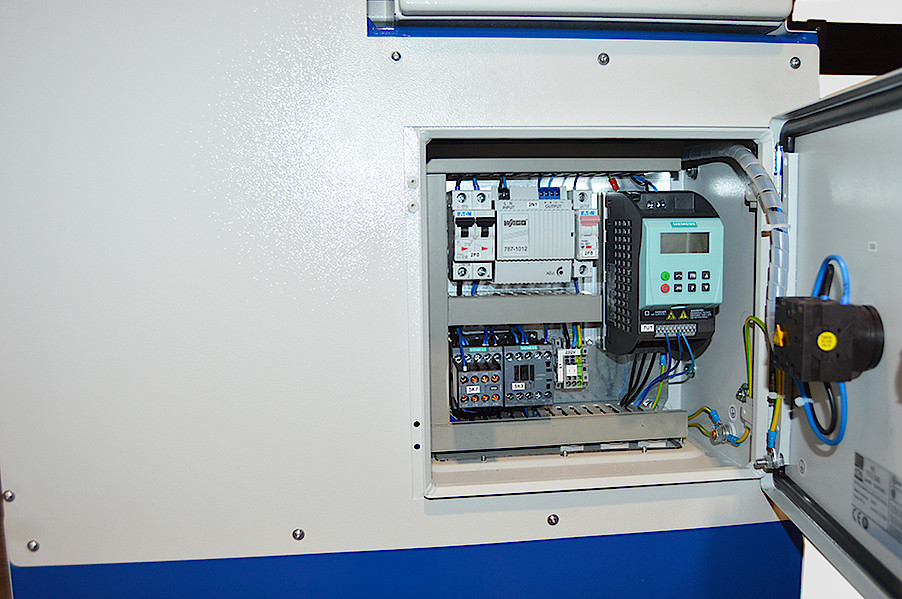

Everything on board - the solid welded steel frame hides drive and control box. Powder-coated cover panels protect the interior from dirt and ensure a clean look. Enclosures at safety-relevant points are secured with limit switches.
