Brush Clamping

The disc brushes are inserted by the operator into the clamping station by hand. The holder is clamping the brush pneumatically. The holder can be set up quickly and easily for different brush sizes.

Devices

The trimming device is equipped with an attachment bracket for quick exchange of cutting tools. Not only synthetic of natural fibers can be cut but also abrasive or all kind of wire filaments. The depth is adjusted mechanically using a hand wheel, as is the case with the cleaning unit.

Drive & Controls

A powerful geared motor feeds the main disc, its speed is infinitely variable via a potentiometer, as is the trimming unit and feed rate. Each unit can be switched on individually. In order to achieve the perfect trimming result, various program sequences can be set, such as running the units once or several times.

With the lowest possible electronic effort, we achieve maximum ease of use. Simple operation, longer life and low susceptibility to failure are the advantages of this control concept.

Machine Frame

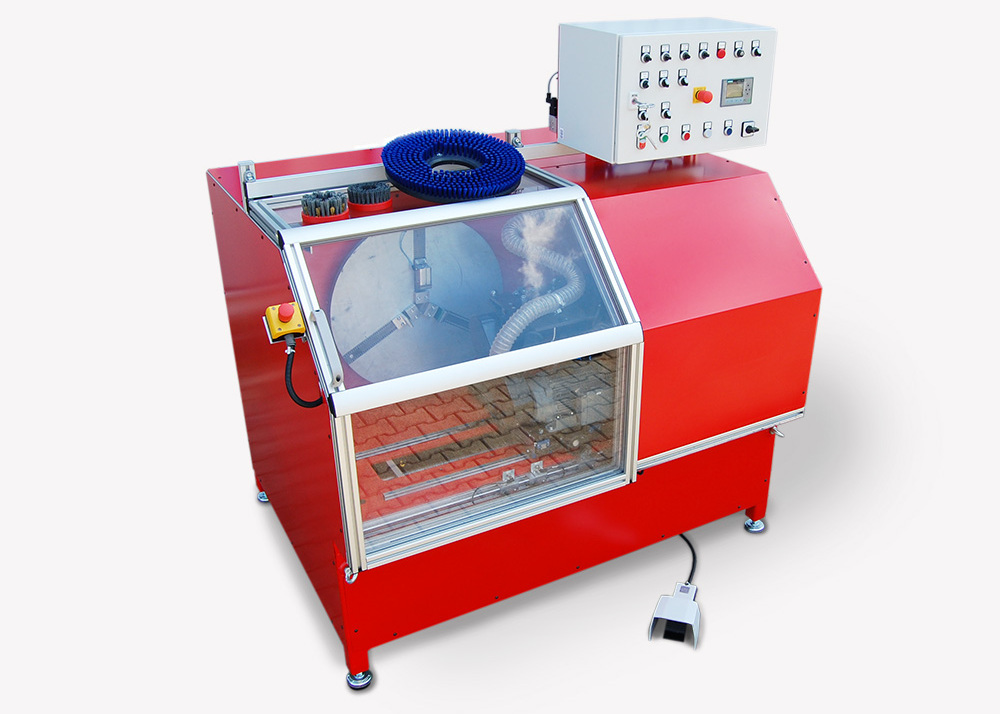

Everything on board - the solid welded steel frame hides drives and control cabinets. Powder-coated cover panels protect the interior from dirt and ensure a clean look. Enclosures at safety-relevant points are secured with limit switches.

Foot Switch

The pneumatic clamp is actuated via the foot switch. After closing the sliding door, the operator starts the machine via the control panel. Once the shearing process is complete, the door can only be opened when all engines have stopped.

Housing & Dust Exhaustion

Loose filaments and sections are sucked off inside the machine. For this purpose, at the critical points sufficiently large tubes are present, directed out of the machine for connection to an external stationary or central exhaust. In addition, the housing protects against excessive dust and noise in operator's working area.

We optionally supply a mobile dust extraction system that ensures clean operation of the system if there is no central exhaustion system. In addition, the exhaustion device can be equipped with a mobile soundproof housing.
