Toothed Band Entry

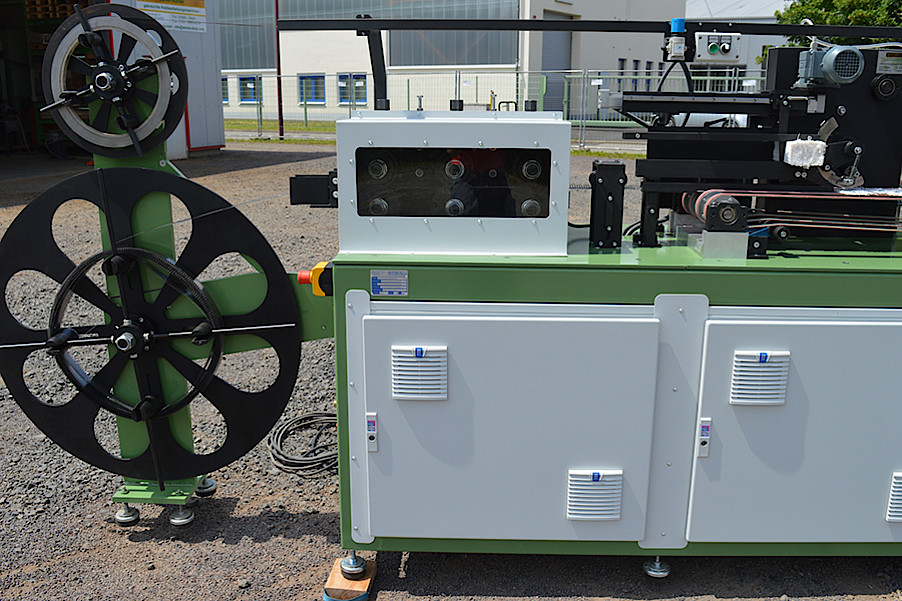

Band coiler. Centering device. First forming.

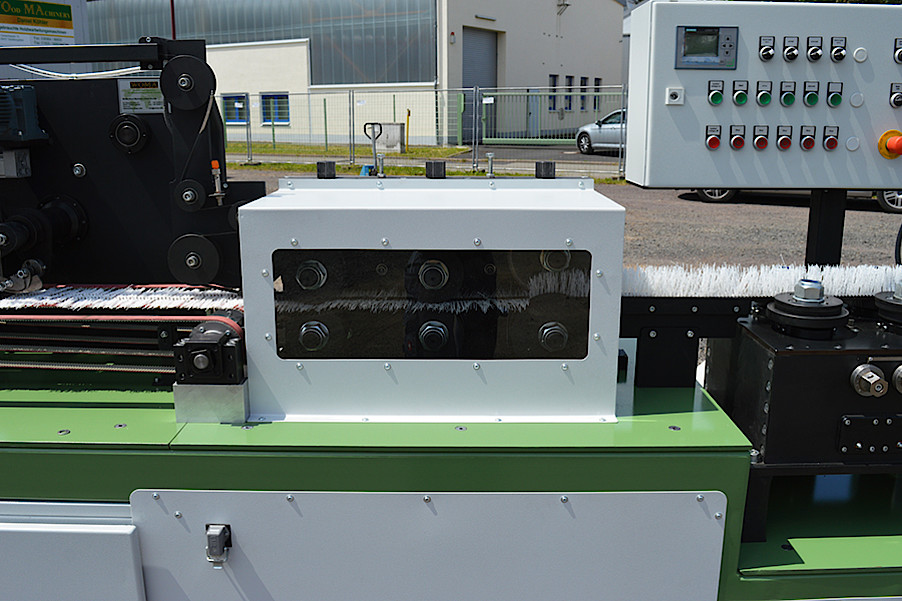

Centered, the steel band enters the forming station, where three pairs of driven rollers form the profile exactly.

Automatic Picker

Filament box. Halfmoon picker. Transport belts.

The picker is especially designed for the uniform processing of abrasive materials, Tampico and wire. The least possible wear on moving parts as well as their structure were in the foreground of development. During operation, the material box is refilled.

Drive & Controls

Powerful geared motors. Stepless speed control. Display for entering the cutting length. Monitoring for band end, filament box empty, wire end, cutter faults, winder and guards. Remote control for manual operation. Emergency stop.

With the lowest possible electronic effort, we achieve maximum ease of use. Simple operation, longer life and low susceptibility to failure are the advantages of this control concept.

Inner Band Entry

Band coiler. Second forming. Closing device.

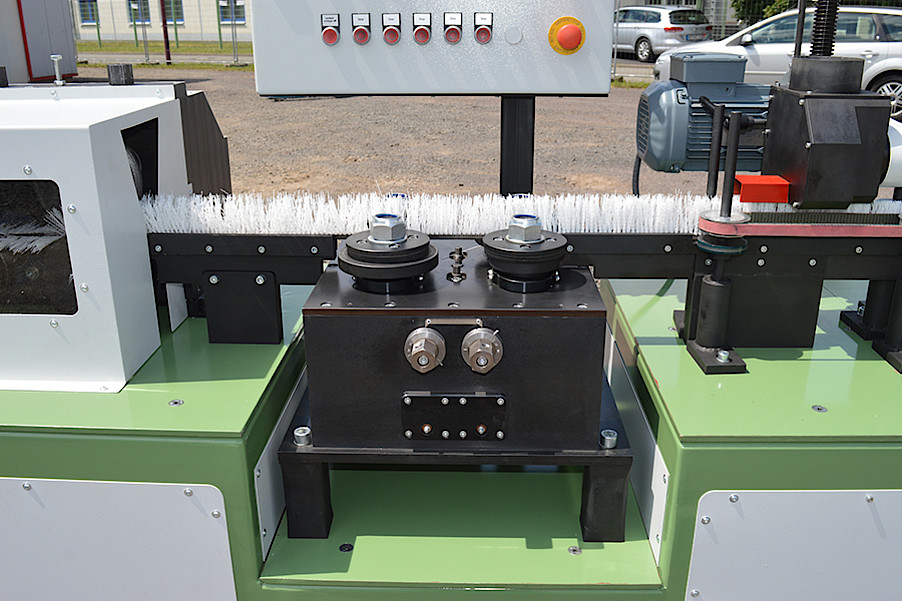

"Wedding" this station can be called, where toothed band, inner band and filaments are finally joined together. Thanks to our particularly strong closing device, the strip brush later withstands the heaviest strains.

Machine Frame

Stahlrahmen. Verkleidung. Sicherheitsumhausung. Schaltschränke.

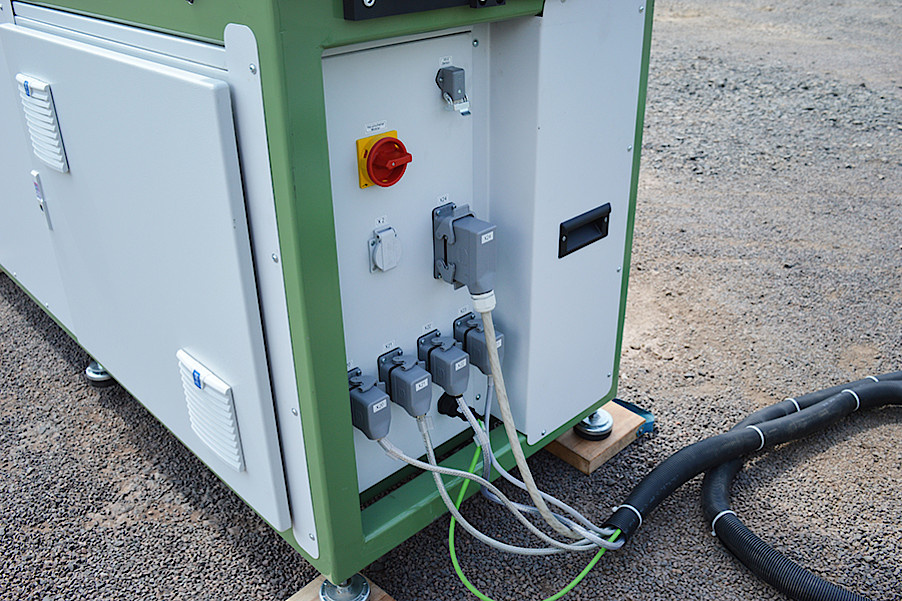

Everything on board - the solid welded steel frame hides drives and control cabinets. Powder-coated cover panels protect the interior from dirt and ensure a clean look. Enclosures at safety-relevant points are secured with limit switches.

Finish

Combing. Trimming.

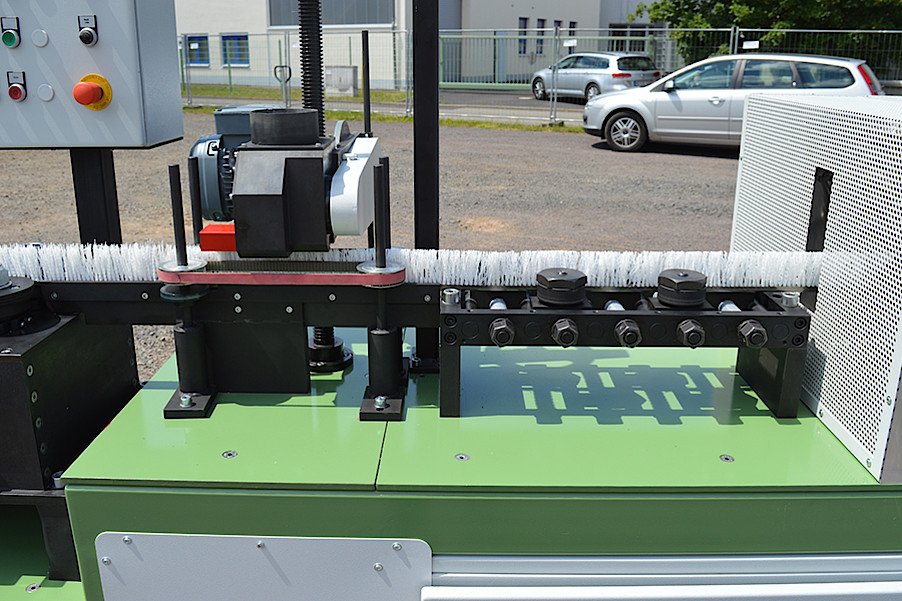

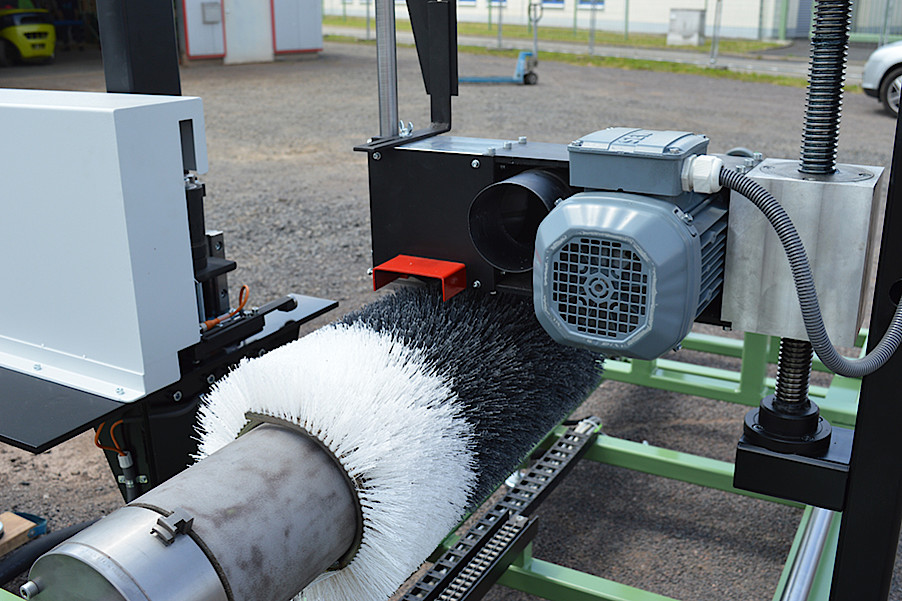

Adjustable sidewards, in height and angle, the razor-sharp cutters bring the strip brush its final perfection. The combing device can be folded up or down as needed. Special aggregates are used for reliable shearing of abrasive filaments or wire.

Cutter

3-fold Cutter.

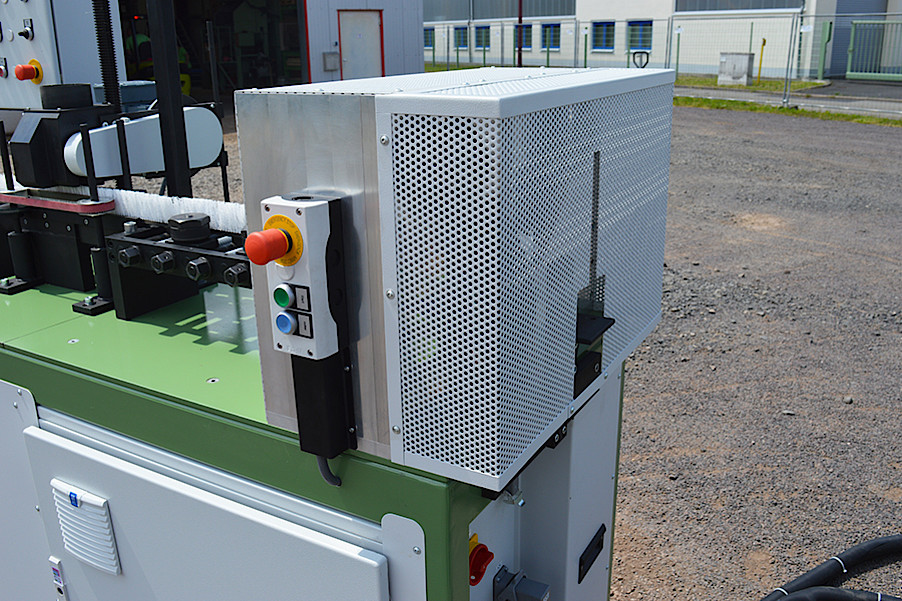

Accompanying the fully automated production process or fixed, this cutter defeats every profile size and every material. Its strong drive transmits the power to two movable knives, which face a fixed one. Thanks to this technology, the brush end is perfectly closed without sharp corners and edges.

Winder

Transfer. Winder.

Thanks to an ingenious system, the winder and the machine are connected so that the strip brush is always held in tension and wound tightly. Winding grade and direction of the winding are freely adjustable. The trimmer brings the roller brush perfectly in shape. More information about our winder system can be found here.
