Twisting System

The high-quality special chuck can be equipped with a tear-off function on request. You can use the screwing hook on the opposite side to determine the diameter of the eyelet. Twisting takes place in two steps: pre-twisting and post-twisting, with the twisting speed being infinitely variable.

Trimmer

The high-performance cutter moves along the brush under pneumatic guidance after twisting. Contours or conical shapes can be created using a template. The trimming device is equipped with an attachment bracket for quick exchange of cutting tools. Not only synthetic of natural fibers can be cut but also abrasive or all kind of wire filaments. The depth is adjusted mechanically. There is a connection for the suction on the housing of the shearing unit.

Drive & Controls

The operator works while sitting. Wire tension and screwing are started using a foot switch, trimming is done with two-hand operation. The twisting and cutterg speed can be adjusted continuously using potentiometers.

With the lowest possible electronic effort, we achieve maximum ease of use. Simple operation, longer life and low susceptibility to failure are the advantages of this control concept.

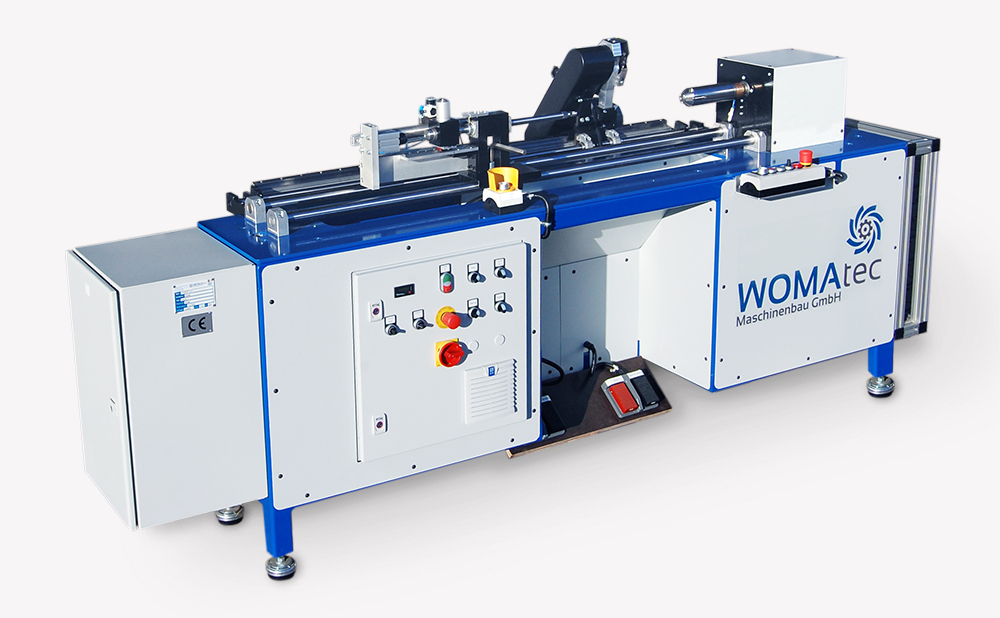

Machine Frame

Everything on board - the solid welded steel frame hides drives and control cabinets. Powder-coated cover panels protect the interior from dirt and ensure a clean look. Enclosures at safety-relevant points are secured with limit switches.
